Vibratory Pile Driving: How It Works and When to Use It

Vibratory pile driving installs and extracts piles by applying rapid vertical oscillations instead of repeated impact blows. A vibratory hammer is clamped to the pile and uses rotating eccentric weights to generate vibration, temporarily reducing soil resistance and allowing the pile to penetrate under the combined effect of vibration, hammer weight and any additional crowd force.

The main operating parameters are vibration frequency, amplitude and eccentric moment. Their effect depends on the interaction between the hammer, pile and soil. In granular soils, vibration can disturb particle contact and reduce shaft friction while the pile is moving. However, soil resistance can recover after installation, so driving speed alone does not confirm the final capacity of a pile.

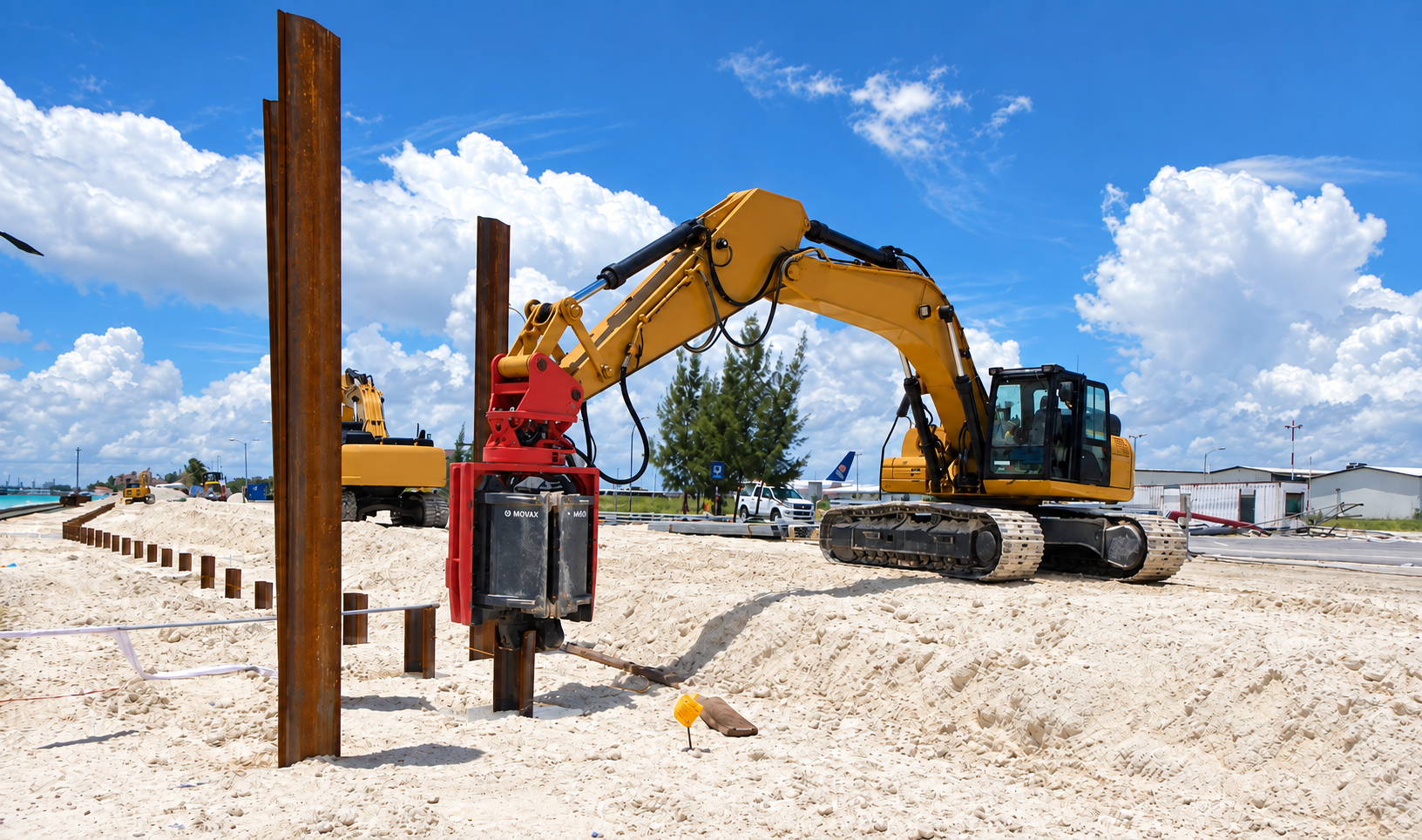

Vibratory hammers may be crane-suspended, leader-guided or mounted on excavators. Crane-suspended systems are widely used for marine, bridge and port construction, while leader-guided systems provide greater control of pile alignment. Excavator-mounted side-grip drivers can handle, position, drive and extract piles with one machine, making them useful in restricted-access or low-headroom areas.

The method is generally most effective in loose to medium-dense non-cohesive soils such as sands and some gravels. Typical applications include sheet piles, tubular steel piles, H-piles, temporary casings, cofferdams, trestle bridges and temporary access structures. Vibratory equipment is also frequently selected for pile extraction after temporary works have been completed.

Performance becomes less predictable in dense gravel, heavily overconsolidated clay, hard layers, bouldery ground and shallow rock. A pile may move quickly through soft material and then stop at a dense or obstructed layer. Depending on the site conditions, the contractor may need a larger hammer, pre-augering, pre-drilling, water jetting, pile-end protection or a change to impact driving. Any method that changes the surrounding soil should be coordinated with the project engineer.

Vibratory driving is often chosen to reduce impulsive noise and, in suitable conditions, limit environmental disturbance compared with impact driving. Nevertheless, it does not eliminate vibration risk. Ground response depends on frequency, amplitude, pile geometry, soil layering, groundwater and distance to nearby structures. Sensitive projects may require condition surveys, baseline measurements, trigger levels and continuous monitoring. Resonance-free or variable-moment technology can help control vibration during start-up and shutdown, but site-specific assessment remains necessary.

Vibratory hammers can also be used for extraction, but removing a pile may be difficult when long-term shaft friction, soil adhesion or interlock resistance has developed. Contractors should plan extraction before installation, considering crane or excavator capacity, pile condition, access, possible damage to reusable piles and the effect on adjacent structures. Long piles may need to be extracted in stages.

Equipment selection should be based on the pile type and dimensions, soil profile, required penetration, project function, carrier capacity, hydraulic requirements, access, headroom, noise and vibration limits, productivity targets and quality-control requirements. Vibratory pile driving is not universally superior to impact driving; it is most effective when the hammer, pile, base machine and ground conditions are selected as one working system.

Source:

Wiley – "Fundamentals of the vibratory driving of piles and sheet piles"
U.S. Department of Transpostetion –"Pile Driving Guidelines"
