How Soil and Pile Foundations Affect Railway Bridge Performance

Modern railway bridges must withstand repeated train loads while maintaining track stability and passenger safety. Continuous welded rails (CWR), which eliminate traditional rail joints, provide smoother operation and require less maintenance. However, they also create engineering challenges because the rails, bridge structure, foundations and surrounding soil respond together to moving trains and temperature changes. A 2026 study by researchers at the Indian Institute of Technology Kanpur highlights why understanding these interactions is essential for reliable railway infrastructure.

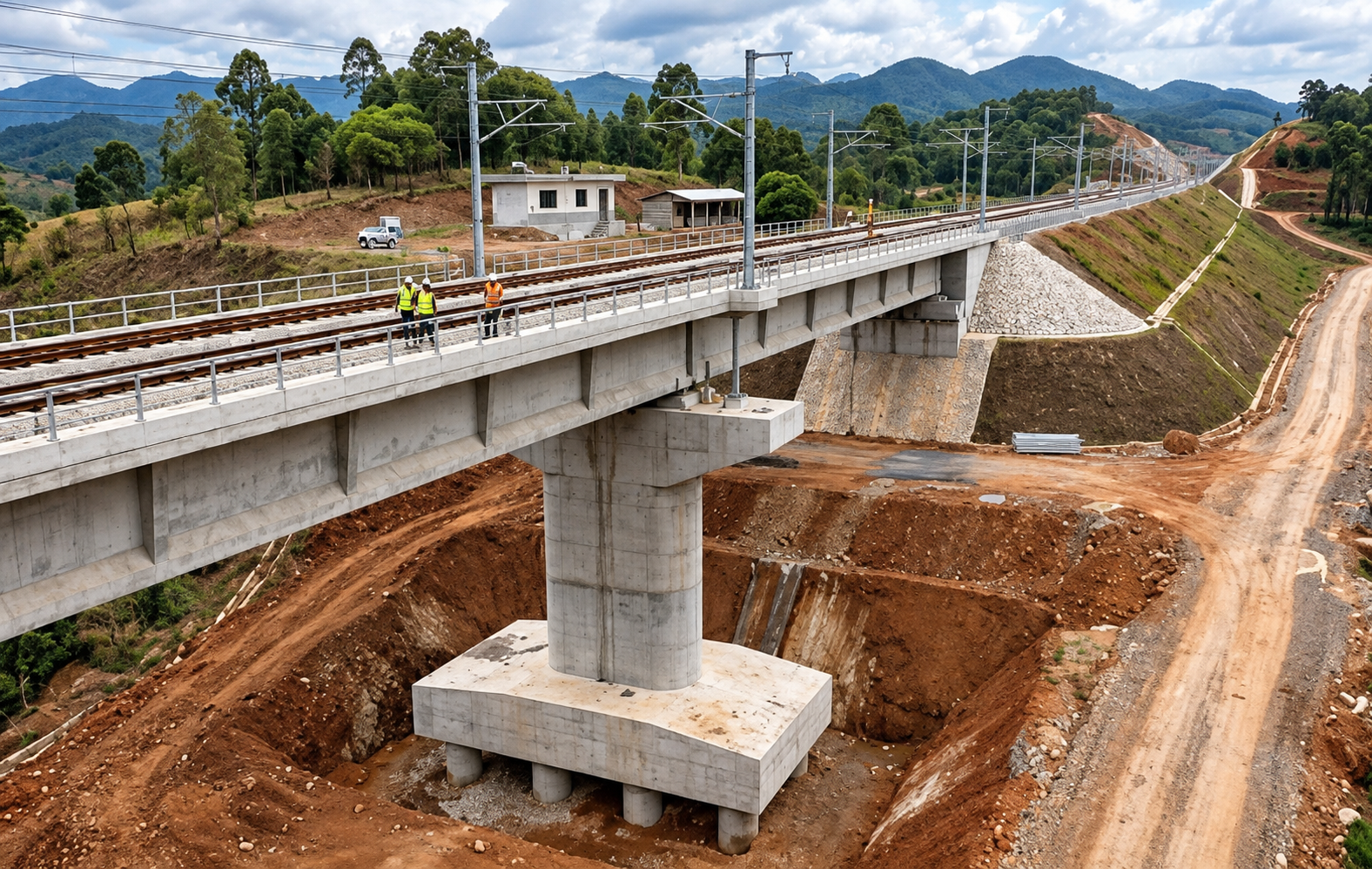

The research focused on the Rohtak–Gohana Viaduct in India, a 2-kilometre elevated railway structure with 110 spans. Researchers examined a 19.8-metre span supported by reinforced concrete bored pile foundations. Each foundation group contained eight piles with a diameter of 1,200 mm. Using three-dimensional structural modelling, the team investigated how different levels of soil and foundation flexibility influence rail stresses and bridge movements under dynamic train loads.

Three foundation conditions were compared: a completely rigid foundation, a pile foundation allowing horizontal movement, and a pile foundation allowing both horizontal and vertical movement. The results showed that soil flexibility has a significant influence on structural behaviour. When horizontal soil flexibility was included, calculated axial rail stresses increased by approximately 16%. When both horizontal and vertical flexibility were considered, the increase reached nearly 20% compared with the rigid foundation model.

The study also identified important effects on bridge deformation. Including vertical soil flexibility increased the calculated vertical displacement of the bridge deck by approximately 12.7%. These findings demonstrate that treating pile foundations as perfectly rigid can underestimate rail stresses and overestimate the overall stiffness of a railway bridge. More realistic modelling of soil–pile interaction helps engineers predict structural responses and assess potential risks, including excessive rail stresses, track buckling and rail fractures.

For foundation engineers and railway infrastructure designers, the research provides a valuable lesson: pile foundation design is not only about supporting structural loads but also about controlling how the entire railway system behaves. Soil conditions, pile stiffness and foundation flexibility should be considered together with the bridge and track structure. By incorporating both horizontal and vertical soil–structure interactions into engineering calculations, designers can improve the accuracy of structural assessments and support safer, more reliable railway infrastructure.

Original research: Nupur Saxena, Prishati Raychowdhury and Samit Ray-Chaudhuri (2026). Influence of Soil-Structure Interactions on Rail-Viaduct Dynamics with Continuous Welded Rail Systems. Springer Nature, Lecture Notes in Civil Engineering, Volume 873.

Source: https://doi.org/10.1007/978-3-032-27698-8_71
